AirBIRD & AirGRAD UAV Systems
The AirBIRD
The AirBIRD is a turnkey light-weight towed-bird magnetometer system designed specifically for UAVs. This system has everything needed to carry out high precision magnetometer surveys from an UAV.
The AirBIRD weighs 3.5 kg and therefore is suitable for medium and larger quadcopters and helicopter UAVs. The recommended minimum airspeed is 10 m/s. The system is designed to simply be attached to an appropriate UAV for immediate survey operations.

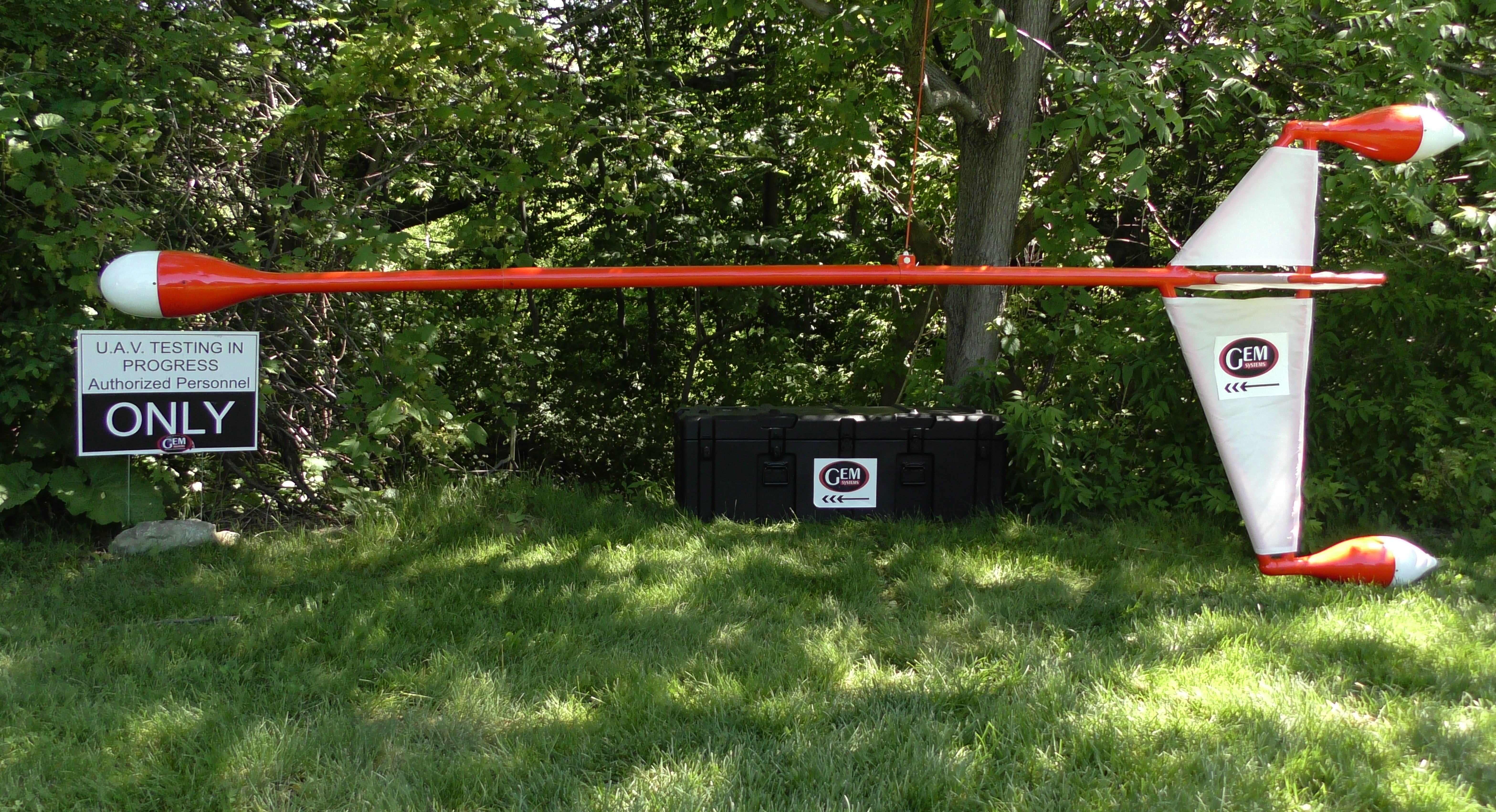

GEM System’s AirBIRD in Niagara, Canada.
As well as providing high quality magnetic data, the AirBIRD records and stores additional flight parameters. Altitude, GPS location, Pitch, Roll, Yaw, and Satellite information can all be transmitted in real time to the ground station and displayed with GEMDAS, our custom data acquisition software. The GEMDAS software features include Multi-Window display of mag data and flight parameters, 3D Graphic Attitude display, and Integration with Google Earth.
This turnkey solution is designed for ease of use. All parameters are sent in real time to the ground station through a radio link wireless transfer. The complete system is operational non stop for 1.5 hour default. Increasing flight time will result in increase of total weight.
The AirBIRD can be purchased as a standalone instrument or complete with an appropriate UAV to be a complete survey system.
The AirBIRD UAV System includes:

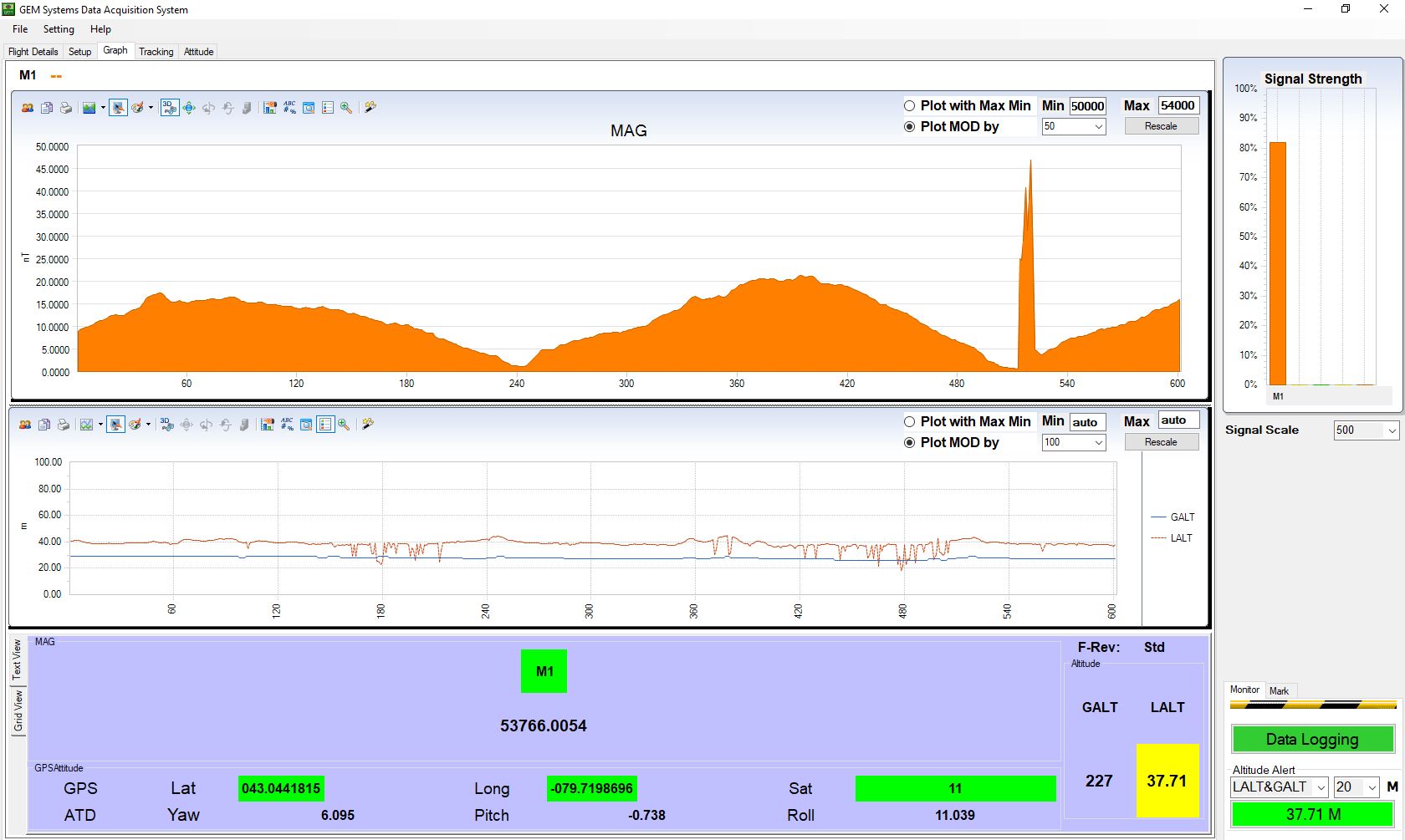

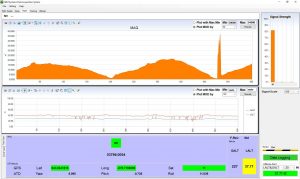

GEMDAS Acquisition System Multi Window Dislpay
will show all Mag and Flight Data in Real Time.
- GSMP-35U/25U High Sensitivity Magnetometer
- Light weight AirBIRD with 10 meter tow cable.
- RadioLink- Wireless data transfer: base station and remote
- Ground Station Computer + GEM Airborne Logger Software
- Battery complete with charger for 1.5 hours of system operation
- GEMDAS Data acquisition Module
- Laser Altimeter
- IMU
- GPS 0.7m resolution
- Instruction Manual
- GEMLink+ software for File Transfer, Diurnal Correction, Profiling and Basic Mapping & Modeling
- Total Weight: 3.5 kg
Magnetometer Specifications
- Sensitivity: 0.0002 nT @ 1 Hz (35U), 0.022nT @ 1Hz (25U)
- Resolution: 0.0001 nT
- Absolute Accuracy: +/- 0.05 nT
- Heading Error: + / – 0.05 nT 360 degrees full rotation about axis
- Dynamic Range: 15,000 to 120,000 nT
- Gradient Tolerance: 50,000 nT/m
- Sampling Intervals: 1, 2, 5, 10, 20 Hz
- Operating Temperature: -40°C to +55°C
The AirGRAD
The AirGRAD is a light-weight vertical gradiometer designed for use with UAV systems. At a weight of 6.0kg, the turnkey gradiometer solution includes two high sensitivity ultra light-weight magnetometers, plus all of the components required for a precise UAV gradiometer survey.
The AirGRAD UAV System includes:
GEM System’s UAV AirGRAD and Rugged Carrying Case
- Two (2) GSMP-35U/25U High Sensitivity Magnetometers
- Light weight AirGRAD with 10 meter tow cable.
- RadioLink- Wireless data transfer: base station and remote
- Ground Station Computer + GEM Airborne Logger Software
- Battery complete with charger for 1.5 hours of system operation
- GEMDAS Data acquisition Module
- Laser Altimeter
- IMU
- GPS 0.7m resolution
- Instruction Manual
- GEMLink+ software for File Transfer, Diurnal Correction, Profiling and Basic Mapping & Modeling
- Total Weight: 6.0 kg
Magnetometer Specifications
GEM System’s AirGRAD Packed into
Carrying Case for Easy Shipping.
- Sensitivity: 0.0002 nT @ 1 Hz (35U), 0.022nT @ 1Hz (25U)
- Resolution: 0.0001 nT
- Absolute Accuracy: +/- 0.05 nT
- Heading Error: + / – 0.05 nT 360 degrees full rotation about axis
- Dynamic Range: 15,000 to 120,000 nT
- Gradient Tolerance: 50,000 nT/m
- Sampling Intervals: 1, 2, 5, 10, 20 Hz
- Operating Temperature: -40°C to +55°C
